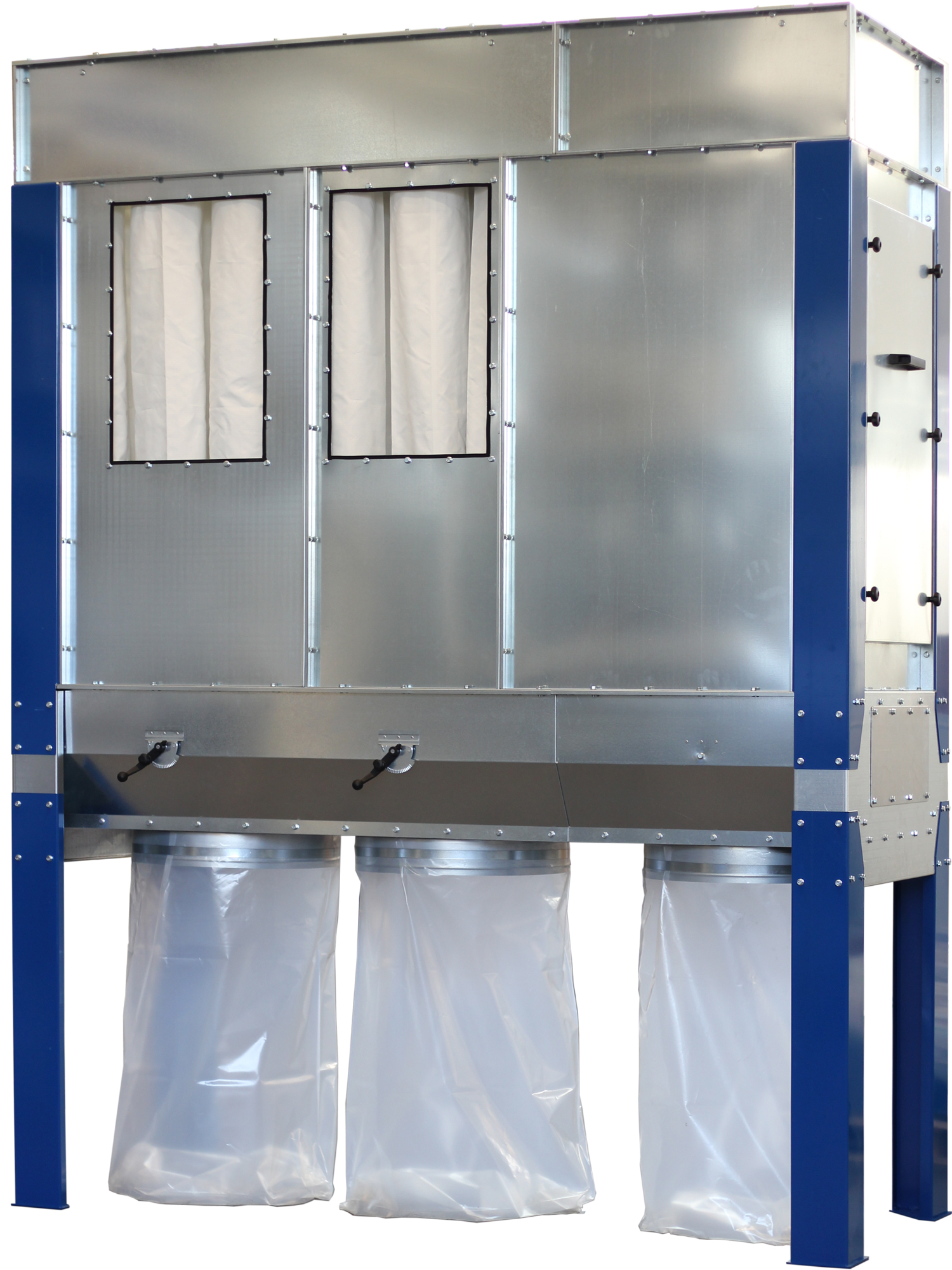

MIDI MAX Modular filter unit for dust and chip

The MIDI MAX modular filter unit is the cheapest and most practical solution for the removal of dust, which allows you to have a large filtering surface and large collecting dust.

The MIDI MAX dust filter is, of course, also ideal for the filtering of dust and small chips where the quantity is not so big to require the use of a mini-silo or separate container (silo).



Modular design

The MIDI MAX filters are manufactured in galvanized prefabricated panels which are easily assembled in standard modular units. The smaller unit is equipped with 2 collecting bags and 24 filtering sleeves (2/24); but placing side by side additional moules, you can create a filter unit to 4 collecting bags and 48 filtering sleeves (4/48). Thanks to a perfect technical realization and modularity system, MIDI MAX are totally dismountable, allowing a very small package dimentions and a very low shipping cost.





Improved filtering efficiency:

The high number of sleeves and the wide range of filtering fabrics, allow you to use MIDI MAX units for various situations. Are also available, on request, special filtering materials with antistatic treatment and BIA certification USG and USG, C.



Space saving:

The MIDI MAX filters  have been created with a view to keep the overall dimensions small in relation to the filtering surface. This means they can be installed where the space available is extremely restricted.



Made in Italy

All our motors and machines are manufactured entirely in Italy, with top quality Italian or European components. They are highly reliable machines.



Prices Personal advice



Apps color smoth icon set

Exceptionally economical

The MIDI MAX series is the most simple and the cheapest of the filtration units with large filtering surface area.





Apps color smoth icon set

Snap ring

To fit the filtering sleeves is very easy thanks to the snap ring quick coupling. in a few minutes you will have placed the full set of sleeves and you’ll be ready to work.

Apps color smoth icon set

Cleaning process

All MIDI MAX version, both opened and carened, have cleaning system with a0,11 hp/80 w motorised vibrator.
For best results cleaning process must be carried out when the fan is not in operation wide range of filtering fabrics, to use MIDI MAX in various situations.

Apps color smoth icon set

Extremely robust and well finished

Midi Max machine is extremely robust and well finished:

  • The most important parts are made of high thickness.
  • Air flow deflector are available upon request, to uniformly fill all the collection plastic bags
    (optional)
  • Wide range of fan, great power and reliability

Apps color smoth icon set

Entired disassembled

Small size packing for a practical and economical transportation.

Specification:


MIDI MAX
MODELLO Maniche Filtranti Superficie Filtrante Sacchi di Raccolta Contenimento
sacchi
Portata Max Sistema di Pulizia Dimensioni
MODEL Filtering sleeves Filtering surface Collecting Bags Collecting Volume Max Air Flow Cleaning System Dimensions
1/11 12 11 mq 1 0,35 m3 1.600 1 800 x 1000 x 3100
1/17 17 mq 2.500 800 x 1000 x 3800
2/23 24 23 mq 2 0,70 m3 3.300 1 1600 x 1000 x 3100
2/33 33 mq 4.800 1600 x 1000 x 3800
3/34 36 34 mq 3 1,05 m3 4.800 1 2400 x 1000 x 3100
3/50 50 mq 7.500 2400 x 1000 x 3800
4/45 48 45 mq 4  1,40 m3 6.600 2 3200 x 1000 x 3100
4/66 66 mq 9.600 3200 x 1000 x 3800

The values “MAX Flow Capacity” refer to a crossing speed sleeves equal to 0.04 m/sec. Lower crossing speed provide better filtration and greater purity of the exhaust air.
Check the regulations of your country for the proper choice of the filtering unit.
