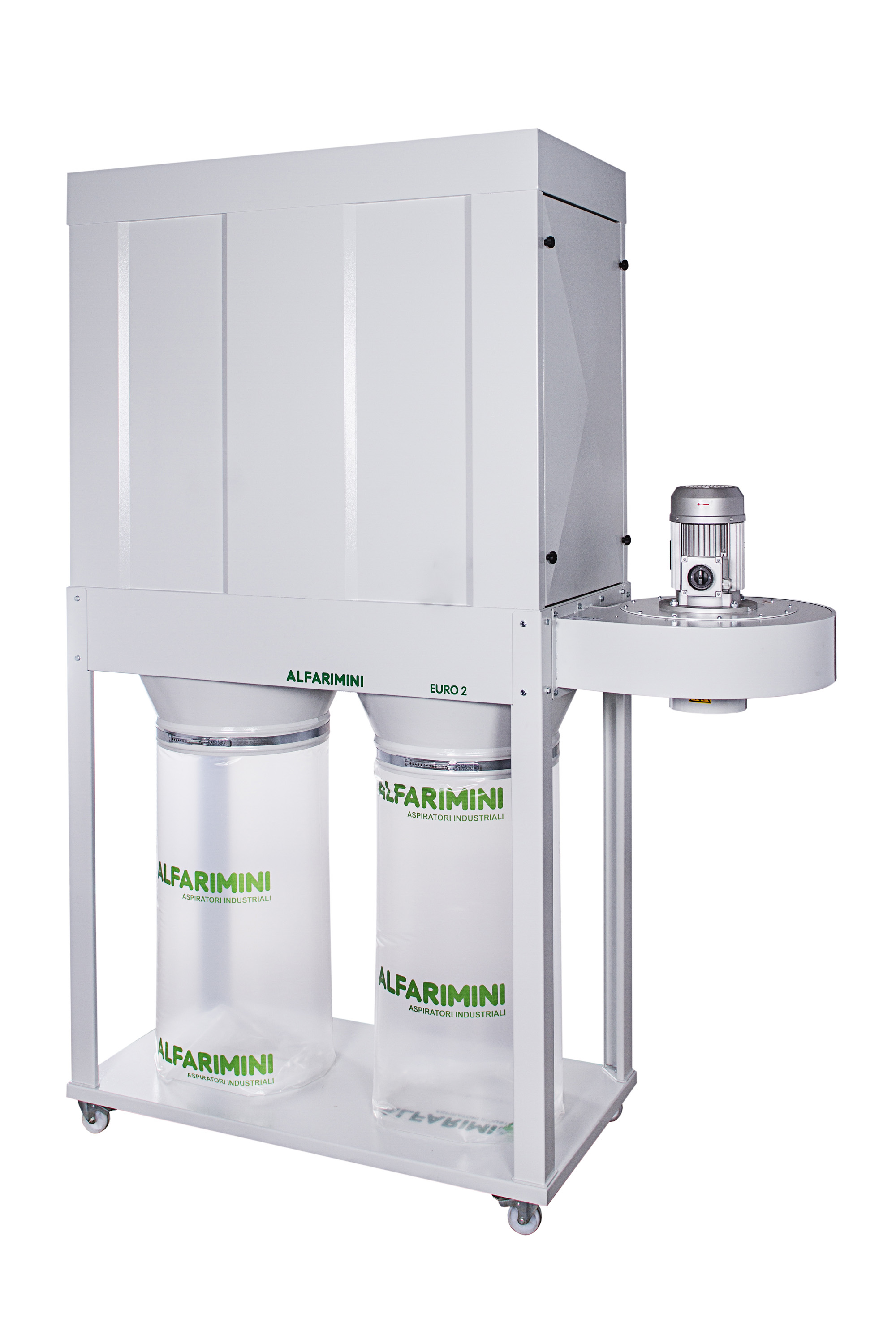

Euro 2 Sleeve cleaning with manual shaker

Euro 2 is a professional extraction unit with specific features in the Euro range by Alfarimini. It therefore features sturdy painted sheet metal and faired and wheeled frame. Its three-phase motor has 4 HP power and is always supplied with a 1.5 m supply cable and motor protection circuit breaker.


The standard version includes 18 cotton filter sleeves, an ideal fabric for filtering coarse dust and wood shavings, plastic and others.


Should you need to extract special or very fine dust, it is advisable to use different fabrics, such as polyester satin, needle felt. Using these special filtering fabrics or installation of a cartridge filter, ensures even fine dust is collected and not dispersed in the environment.


As the whole EURO range of extraction units, this machine is also designed for ejecting the purified air outside, if a hole is arranged on the roof, for connecting a pipe with flue.


The fan may be mounted either with the extraction inlet facing upwards or downwards. The machine is always supplied with a manual shaker, a mechanical system patented by Alfarimini, which makes it possible to conveniently clean the filter sleeves. As an alternative, the Euro 2 may be requested complete with electrical shaker.


Made in Italy

We guarantee that all our products are made in Italy.



Prices Personal advice



Ideal for...


IdeaDue to its power and reliability, this machine may be used even to set up a small centralised extraction system.

Specification:


EURO 2
Three-phase motor power 3 kW – (4 HP)
Suction capacity 3.500/5.000 m3/h
Suction hood Ø 200 mm
Filtering sleeves no. 18 – Ø 180 x 1.030
Filtering surface 10  mq
Inspection door no. 1
Removable door no. 1
Exhausting hood Ø 300
Noise 72,8 dB (A)
Net weight 200 Kg
Overall dimensions: unit ready to use 750 x 2.100 x 2.670 mm
Overall dimensions: disassembled and packed unit 750 x 1.400 x 1.700 mm – 80 x 80 x 80 mm

Upon request:


  • ENHANCED Motor Fan 3 kW (4 HP) with OVERSIZED Fan
  • SILENCED motor fan 3 Kw (4 HP)
  • Extraction capacity 3,100 m3/h
  • Electric Shaker
  • 2 x Cartridge Filters Ø 500 x 660 Motorised
