Mini Euro Arranged for external emission of purified air

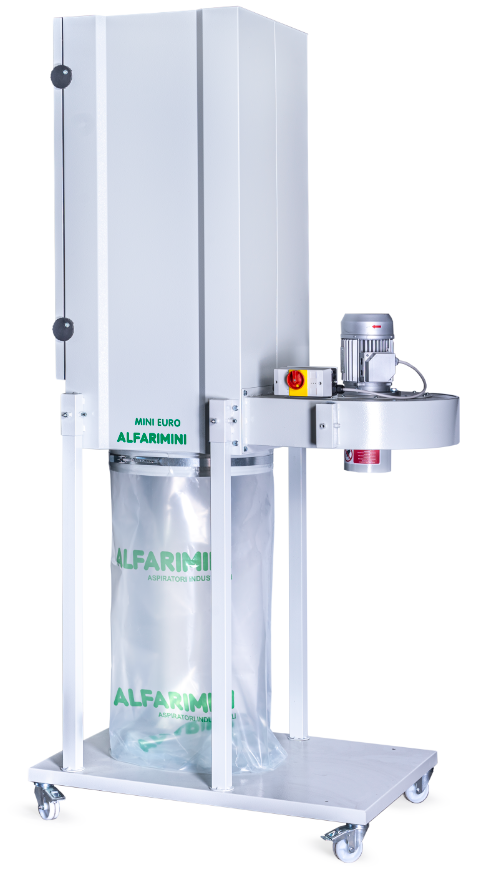

The MINI EURO filter unit is the first machine of the faired EURO range of extractors. It is fitted with filter sleeves and wheeled base and, thanks to the ease of operation, requires minimal maintenance and upkeep costs.


The MINI EURO extraction unit collects the dust and shavings inside a very capacious nylon bag of 500 mm diameter.

You may choose the motor with power 1 or 2 HP, either three phase or single phase. The extraction capacity is indeed excellent and lets you extract without any problems even highly demanding machine tools.


The motor is always fitted with a 1.5 m long power cable and motor protection circuit breaker.

The standard version is supplied with 5 filter sleeves, in cotton 400 gr fabric.

The sleeves may be replaced with a special cartridge filter, which is able to catch the finest dust. The filter cartridge is already fitted with a cleaning system with electric motor.

In the assembly stage, you may decide whether to fit the fan with extraction inlet facing upwardsor downwards. The filter is designed to work perfectly in both solutions.

On the roof of the machine is a hole, for connecting the piping for exhausting the purified air outside.


Made in Italy

We guarantee that our motors and all our machines are designed, produced and assembled in Italy.



Prices Personal advice



Ideal for...


Idea
If you wish to keep the workplace extremely clean and exhaust the filtered air outside the workshop, as required by the guidelines on workplace health and safety. For those who want an already fully assembled machine and immediately ready to start working.

Specification:


MINI EURO

Three-phase motor power

 0,75 kW – (1 HP)

Suction capacity

 1.500/2.000 m3/h

Suction hood

 Ø 140 mm

No. 5 filtering sleeves

Ø 180 x 1.030

Filtering sack

 Ø 450 mm

Filtering surface

 3 mq

Exhausting hood

Ø 250

Noise

 66,1 dB (A)

Net weight

100 Kg

Overall dimensions: unit ready to use 700 x 1.200 x 2.350 mm
Overall dimensions: disassembled and packed unit 700 x 1.100 x 1.700 mm

Upon request:


  • Single-phase motor 0.75 Kw (1 HP)
  • Three-phase / Single-phase Motor 1.5 Kw (2 HP)
  • With oversized fan
  • Extraction capacity 2,500 m3/h
  • 1 x Cartridge Filter Ø 500 x 660 Motorised
