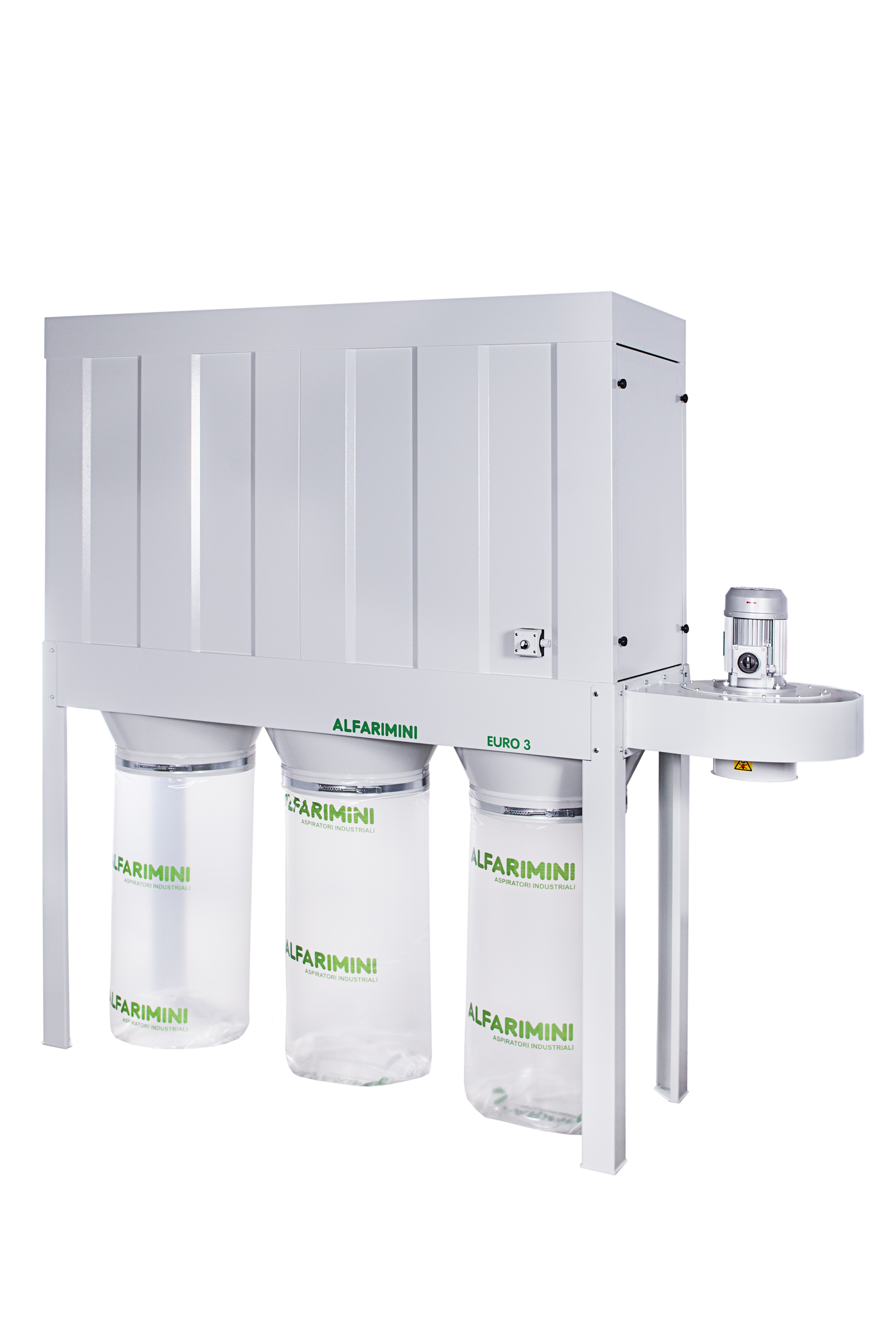

If you need to set up a small centralised extraction system, the Euro 3 filter unit may be the right solution.
EURO 3 is completely faired, fitted with 27 filter sleeves and a cleaning system with electric shaker.
If you need to extract fine dust, we are able to supply filter sleeves in a number of available fabrics, such as polyester satin, or needle felt.
Furthermore, for even more efficient filtering, all the sleeves may be replaced to install the cartridge filters. In this way, even the finest and most volatile dust is collected and not dispersed in the environment. As the whole EURO range of extraction units, this machine is also designed for ejecting the purified air outside, if a hole is arranged in the roof, for connecting a pipe with flue.
With its 4 ro 5.5 HP motors, it achieves very significant flow rates, ideal to extract simultaneously from several machines in a medium-sized workshop.
The extraction inlet may be mounted either facing upwards or downwards. This may be decided at the time of installation. EURO 3 is supplied already fully assembled and ready for use; therefore it is extremely easy and quick to commission.
Your customer’s workshop will be ready to start extraction in a matter of minutes.
Made in Italy All our products are manufactured entirely in Italy.
If you wish to set up a powerful centralised system in few minutes and with the utmost ease.
| EURO 3 | ||||||||
| Model | Motor power | Filtering Sleeve | Filtering Surface | Collecting Bags | Suction hood | Air flow | Cleaning System | Dimensions |
| HP – (kW) | Ø 180 – h 1.030 |
m2 | Ø 500 | Ø mm | m3/h | Electric | l x p x h | |
| Euro 3 – 4 HP |
4 – (3) | n. 27 | 15 | n. 3 | 250 | 5.000 | n. 1 | 2.780 x 800 x 2.580 |
| Euro 3 – 5,5 HP |
5,5 – (4) | n. 27 | 15 | n. 3 | 250 | 6.000 | n. 1 | 2.780 x 800 x 2.580 |
Metal Bin
Metal Connection for Chimney
Overload Protection – CE Rules
A motor fan that generates a very high flow rate, obviously also produces high noise levels.
When the noise is deemed too strong for the workplace, it is possible to opt for the EURO 3 SILENCED version, which combines high performance and extremely low sound pressure.
This special version of Euro 3 is equipped with a fan fitting a 1400 RPM motor. This special feature makes it possible to considerably reduce the sound pressure level, making the place of use extremely quiet.
The pressure and flow rate specifications change with respect to the standard version. Check if they match your application requirements.
Ideal for…
all those who pay special attention to cleanliness in the workplace and a reduction in noise pollution, so the workplace is always welcoming and healthy.
| EURO 3 | ||||||||
| Model | Motor power | Filtering Sleeve | Filtering Surface | Collecting Bags | Suction hood | Air flow | Cleaning System | Dimensions |
| HP – (kW) | Ø 180 – h 1.030 |
m2 | Ø 500 | Ø mm | m3/h | Electric | l x p x h | |
| Euro 3 Silenced |
4 – (3) | n. 27 | 15 | n. 3 | 280 | 5.000 | n. 1 | 3.100 x 950 x 2.700 |
Metal Bin
Metal Connection for Chimney
Metal Connection for Fan
Overload Protection – CE Rules
